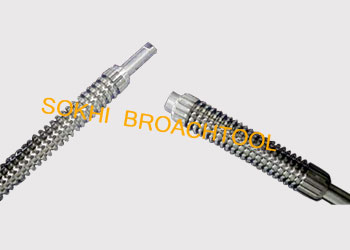

Involute Spline Broaches
We are proud to offer extra ordinary Involute Spline Broaches as part of our Spline Broaches range. The Involute Spline Broaches offered by us are manufactured and designed by experts to offer optimum and glitch free performance for long time periods.
Why our Involute Spline Broaches ?
- Dimensional Accuracy
- Fabricated Using Premium Quality Materials
- Strong and Durable
- Higher Concentricity Between Major and Minor Dia
- Gear Teeth Quality Complies to ISO 8
Widely used in
- Tractor Lift Arms
- Coupling Flange
- Bull Gears
- Gears Blanks
- Hubs
Technical Specifications
- Major Diameter : 10 mm-200 mm
- Module : 0.5 Module-8 Module
- Diametral Pitch (DP) : 8 DP-40 DP
- Pressure Angle (PA) : 14.5o, 20o, 25o, 30o, 37.5o, 45o, PA or as Per Customer's Specificatoin.
- No. of Splines : 2-999
- Job Length : 5 mm - 300 mm
- Maximum Broach Length : 1800 mm
